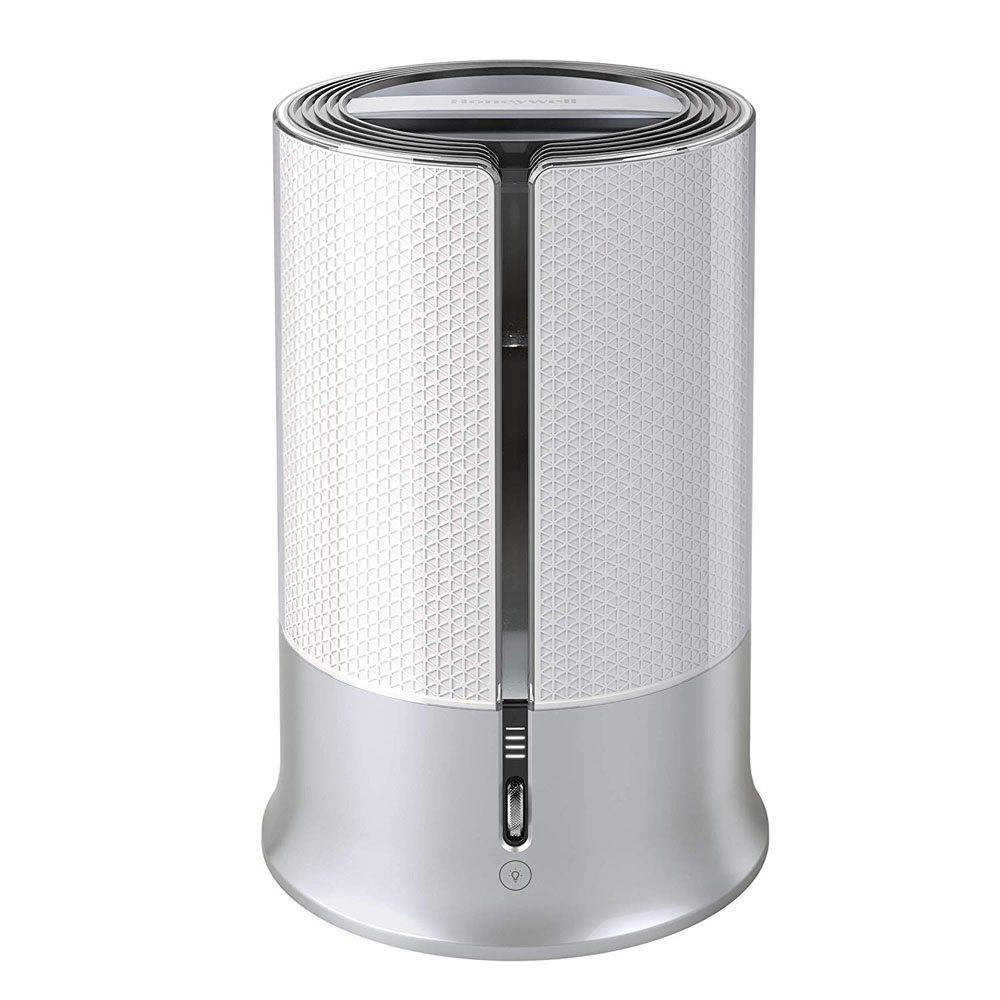

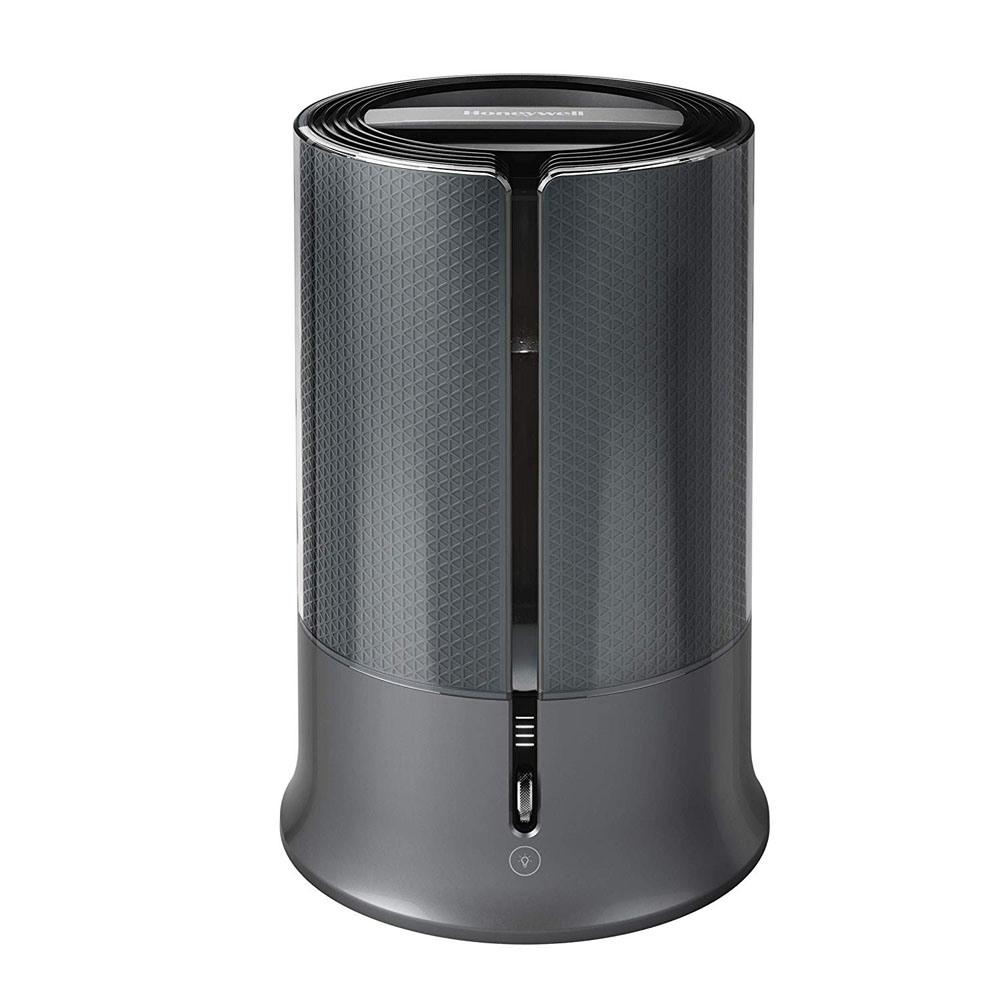

Honeywell HUL430 Designer Series Ultrasonic Cool Mist Humidifier review

The Honeywell Designer Series HUL430 is a filter-free ultrasonic cool-mist humidifier with a 1.25-gallon stated capacity, a manual output wheel, a separate oil tray and a tank light with Bright, Dim and Off settings. Its larger reservoir than the half-gallon HUL530 retains simple dial operation. It is not a humidity-sensing machine: you choose mist output yourself and watch for excessive moisture.

One HUL430 plan, in black or white

Honeywell’s product page calls the series HUL430 and shows the black and white finish codes as HUL430B/W. Honeywell’s licensed U.S. store has separate black HUL430B and white HUL430W listings, with retailer MPNs HUL430BV2 and HUL430WV2 and different UPCs. Both pages link the same HUL430-series owner’s manual and describe the same operation, so the finishes belong in one review rather than two different capability profiles. The sources do not explain what the store’s V2 suffix means; it is recorded as a listing identifier, not evidence of a second operating version.

Manual output instead of a humidity target

The HUL430 makes visible cool mist with an ultrasonic nebulizer and a fan. Turning the textured control wheel changes output; indicator lights brighten as the setting rises. There is no documented humidity sensor, selectable relative-humidity cutoff, automatic cycling, timer, app or handheld remote. Empty-tank shutoff is a safeguard, not humidity control. Honeywell recommends 40–60% indoor relative humidity and a separate monitor; if condensation appears, the manual says to lower output or stop until it clears.

The official page labels the room size “Medium” but publishes no square-foot range. “Ultra quiet” is likewise a maker claim without a decibel rating or independent noise test. Keep it out of a shortlist when numeric coverage or automatic humidity adjustment is essential.

A larger inverted tank takes two-handed handling

The manual calls capacity 1.25 U.S. gallons for the tank and reservoir together. It does not top-fill: turn the unit off, lift out and invert the tank, unscrew the cap, fill with cool water, secure the cap and reseat it. The manual recommends supporting the tank bottom with your second hand. This refill motion is less convenient than top access, and a full tank is still a water load to manage at the sink.

The manual’s fill instructions give 4.5 liters for 1.25 gallons, while its specifications say 4.7 liters. The licensed listing gives 1.25 gallons but does not reconcile those metric numbers. This assessment retains the gallon claim and leaves liters unknown, so an essential liter threshold is not met by guesswork. The official page lists 8.8 inches wide, 13.2 high and 8.8 long; the licensed listing adds a 6.6-pound weight. Allow space above the body height for the outlet and tank removal. The manual calls for a firm, water-resistant, level surface 12 inches from a wall and four feet from a bedside, with mist aimed away from walls, furniture and bedding.

Oil belongs on the pad, not in the water

The separate tray accepts a few drops of essential oil on its pad; the manual describes this as passive evaporation outside the water path, not as a diffuser. It explicitly warns against adding essential oils, liquid inhalants or other additives to the tank, reservoir, base or mist outlet. This distinction is especially important if you are comparing Honeywell models: the HUL530 manual permits a tank-oil route, but that permission does not carry over to the HUL430. If direct tank addition is essential, choose an exact model whose own manual allows it; if you want to keep oil separate from water, the HUL430’s tray is the documented route.

Filter-free still means daily water and weekly cleaning

There is no wick filter to replace, but the ultrasonic nebulizer can collect mineral deposits. Honeywell recommends fresh water every day and weekly cleaning. Its manual separates scale removal from disinfection, warns that the nebulizer is fragile, and says not to submerge the housing. In hard-water conditions, dissolved minerals can form white residue around the unit; filter-free does not mean mineral-free or maintenance-free. Follow the HUL430 manual’s own water and cleaning directions rather than borrowing a procedure from a similar-looking humidifier.

Who should shortlist it?

Consider the HUL430 if you want a medium-room-label ultrasonic model, a 1.25-gallon stated capacity, a plain manual dial, a dimmable non-color tank light and a separate aroma pad, and if bottom-filling and regular hand cleaning fit your routine. The two finish listings provide black and white choices without evidence of different controls. It is a poor fit when top-fill handling, a numeric coverage promise, a chosen humidity target, a timer, connected control, warm mist, a color-changing light or direct tank oil is non-negotiable.

For a smaller HUL530, Honeywell documents a half-gallon combined tank, a color-changing tank light and—unusually—a direct-tank essential-oil instruction in that model’s own manual, as well as a separate tray. For a one-gallon bottom-fill alternative, the HUL545 remains a manual ultrasonic design with its own separate oil-pad instructions. A top-access, display-and-humidistat product such as the HUL900 changes the handling and control choice, though its own tank-capacity source discrepancy remains unresolved. Compare the exact review and manual for whichever requirement matters most; do not transfer oil permissions, capacities or control features between models.

Primary references: Honeywell Plugged In HUL430 product page and its HUL430-series owner’s manual. Black and white listing identifiers and weight were checked against the black and white Honeywell Store pages. The official product page and manual PDF returned an automated block to direct archival retrieval during this review; the exact model page and manual were inspected in the browser, and the manual was archived from the identical linked Honeywell Store PDF mirror.
